multi-format sliding ceramic tile display display rack
The CT629 frame starts as cold-rolled steel tube, cut and welded on CNC jigs to maintain consistent slot spacing across every unit. No shims, no field adjustments needed.
CT629 Product Overview
The CT629 is built for showrooms that handle large-format porcelain slabs daily. Its frame geometry distributes weight evenly across the rail system so panels glide without binding, even when loaded to capacity.
We finish the CT629 in matte black as standard because it does not compete visually with tile colors. Custom RAL color matching is available for branded showroom environments.
The CT629 was field-tested for 18 months in a high-traffic Dubai showroom before we released the design. Every improvement between prototype and production came from watching real customers interact with real samples.
Assembly hardware for the CT629 is all M8 stainless steel — standard size, won’t rust, and fits the hex key included in every box. Most showrooms have the rack up in under 20 minutes.
Key Features
- Removable end caps allow infinite row extension by bolting additional units together
- Pre-assembled slider carriages — no loose ball bearings to deal with during setup
- 600°C baked powder coating — same finish spec used for outdoor architectural hardware
- Tool-free slot adjustment — lift the bracket, slide to desired position, release to lock
- Push-pull rail mechanism rated at 50kg per rail — keeps heavy slabs gliding smoothly after years of daily use
- Cold-rolled steel main frame with full-length internal reinforcement ribs
- Load-rated at 75kg per shelf — holds even the thickest 1200×1200mm porcelain slabs
- Flat-pack design reduces shipping volume by 85% versus assembled racks
Why Buy Direct from Tsianfan

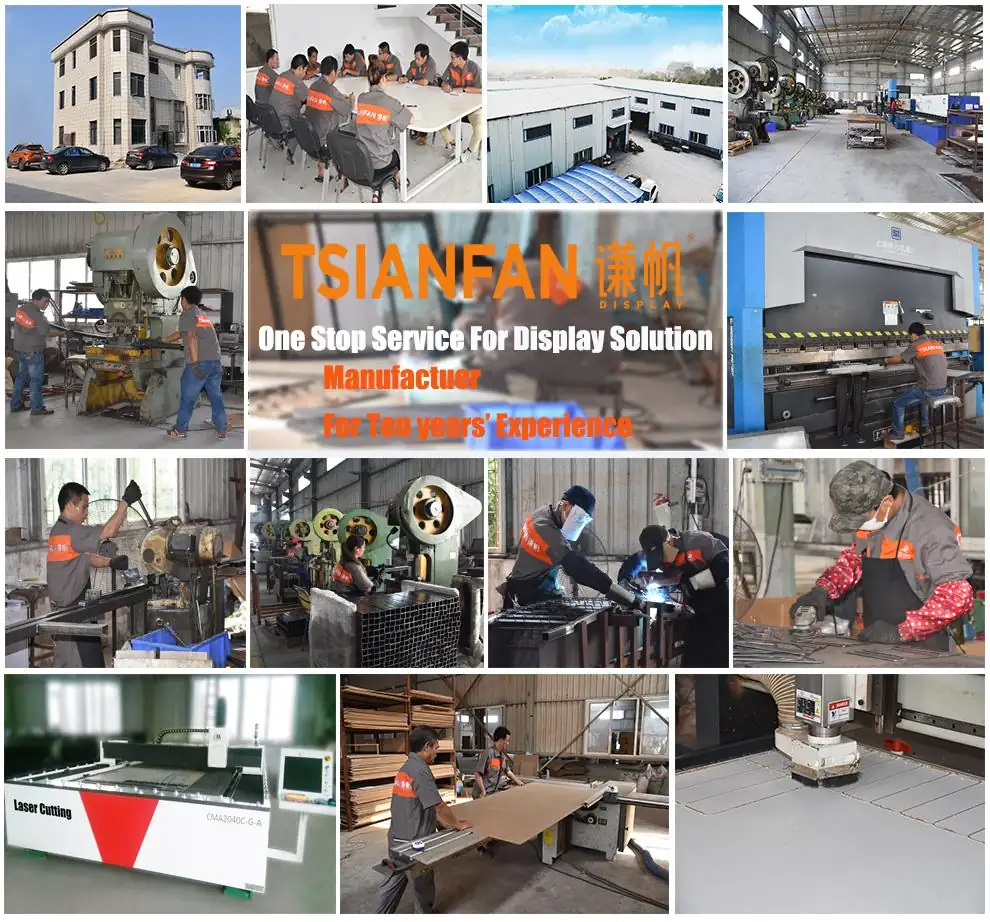

- We own the factory in Xiamen — no middlemen, no brand licensing fees, no inflated logistics charges
- Custom engineering proposals delivered within 3 business days of receiving your requirements
- Every rack completes a 72-hour salt-spray corrosion test before it ships
- Engineering support included at no charge — send us your floor plan for an optimized layout proposal
- 11 years manufacturing display systems exclusively for the building materials industry
Where This Display Rack Fits
Interior design consultation studios
Ordering & Customization
Every order starts with your requirements — dimensions, color, capacity, branding. Contact our sales team at WhatsApp: +86 13365904989 or email: [email protected]. We prepare a detailed quotation with production timeline, typically within 24 hours. For custom sizes, include a simple sketch or reference dimensions — our engineering team handles the rest.
Common Questions
What if a part arrives damaged?
We photograph every order during packing. If any component arrives damaged, send us photos of the affected parts and packaging. Replacement parts ship at our cost.
Can the CT629 be expanded later?
Most of our display racks are modular. You can bolt additional units together to create longer display walls as your product line expands. Contact us with your current configuration for expansion compatibility.
How long does delivery take?
Standard models in stock ship within 7 business days. Custom orders typically require 15-25 business days for production. Sea freight transit varies by destination — most ports in Europe, the Americas, and Southeast Asia receive shipments within 25-35 days after departure.
Where is Tsianfan located and can I visit?
Our manufacturing facility is in Xiamen, Fujian, China, about 20 minutes from Xiamen Gaoqi International Airport. Factory visits are welcome — we can arrange airport pickup. We also offer live video walkthroughs during production if you prefer not to travel.
Can I order the CT629 in a different size or color?
Yes. Frame dimensions, powder coat color, slot configuration, and branding are all customizable. Our engineering team reviews every request and responds with a detailed quotation, typically within 3-5 working days.
