tile sample display rack-e2003
Each E2003 leaves our factory with a QR-coded inspection report showing the batch number, welder ID, coating thickness measurements, and the name of the QC inspector who signed off.

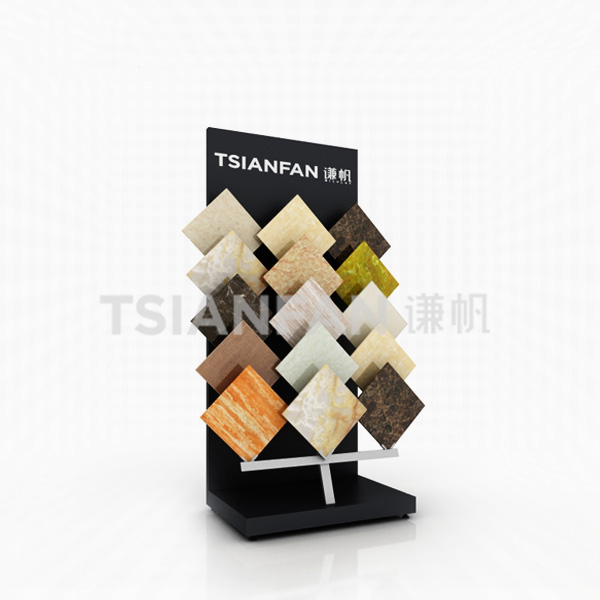

E2003 Product Overview
The E2003 uprights are 45×45mm square tube with 2.5mm wall thickness. We publish the cross-section spec because we want you to compare it against anything else on the market.
The biggest complaint we heard from distributors was display racks that developed a ‘lean’ after 6 months. The E2003 has gusseted corner plates and cross-braced rear panels that eliminate frame racking.
The E2003 frame starts as cold-rolled steel tube, cut and welded on CNC jigs to maintain consistent slot spacing across every unit. No shims, no field adjustments needed.
Showroom managers love the E2003 because samples stay clean longer — the angled display means less dust settles on the tile faces, reducing daily cleaning time.
Key Features
- EPDM rubber contact pads at all sample touch points — rated for permanent indoor use
- Cold-rolled steel main frame with full-length internal reinforcement ribs
- CNC-laser-cut slot brackets with ±0.5mm tolerance — every panel sits at exactly the same angle
- Push-pull rail mechanism rated at 50kg per rail — keeps heavy slabs gliding smoothly after years of daily use
- Removable end caps allow infinite row extension by bolting additional units together
- Flat-pack design reduces shipping volume by 85% versus assembled racks
- Load-rated at 75kg per shelf — holds even the thickest 1200×1200mm porcelain slabs
- Pre-drilled cable management channels for showrooms that add digital screens or lighting
Why Buy Direct from Tsianfan
- Custom engineering proposals delivered within 3 business days of receiving your requirements
- We ship to 50+ countries with correct export documentation on every shipment
- 15+ standard models kept in finished-goods inventory — most sample orders ship within one week
- 11 years manufacturing display systems exclusively for the building materials industry
- Every rack completes a 72-hour salt-spray corrosion test before it ships
Where This Display Rack Fits
Building material wholesale distribution centers
Ordering & Customization
Every order starts with your requirements — dimensions, color, capacity, branding. Contact our sales team at WhatsApp: +86 13365904989 or email: [email protected]. We prepare a detailed quotation with production timeline, typically within 24 hours. For custom sizes, include a simple sketch or reference dimensions — our engineering team handles the rest.
Common Questions
Can I order the E2003 in a different size or color?
Yes. Frame dimensions, powder coat color, slot configuration, and branding are all customizable. Our engineering team reviews every request and responds with a detailed quotation, typically within 3-5 working days.
How is the rack packaged and shipped?
Steel components are foam-wrapped and packed in reinforced export cartons or plywood crates depending on order volume. We ship via sea freight FOB Xiamen, air freight, or international courier. You are welcome to use your own forwarder as well.
What materials can the E2003 hold?
The E2003 is designed around ceramic and porcelain tile samples. Share your sample dimensions and weight with our team, and we will confirm compatibility — usually within one business day.
Where is Tsianfan located and can I visit?

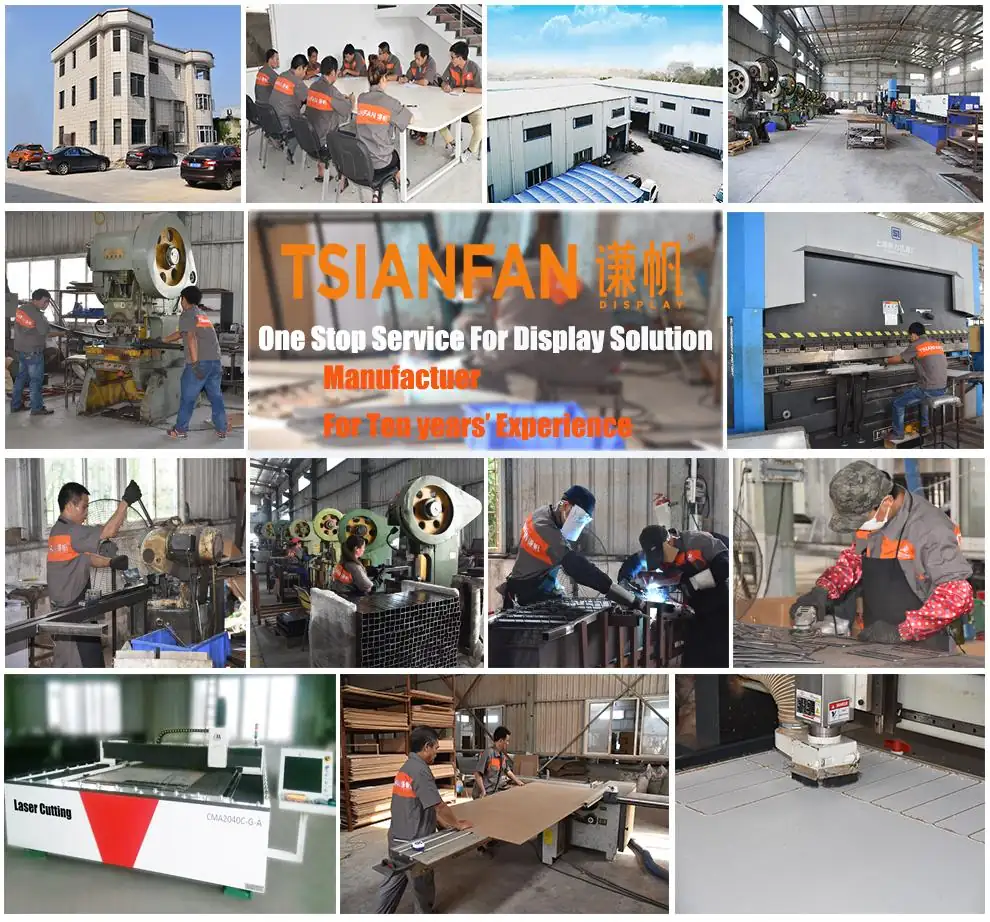

Our manufacturing facility is in Xiamen, Fujian, China, about 20 minutes from Xiamen Gaoqi International Airport. Factory visits are welcome — we can arrange airport pickup. We also offer live video walkthroughs during production if you prefer not to travel.
What if a part arrives damaged?
We photograph every order during packing. If any component arrives damaged, send us photos of the affected parts and packaging. Replacement parts ship at our cost.
