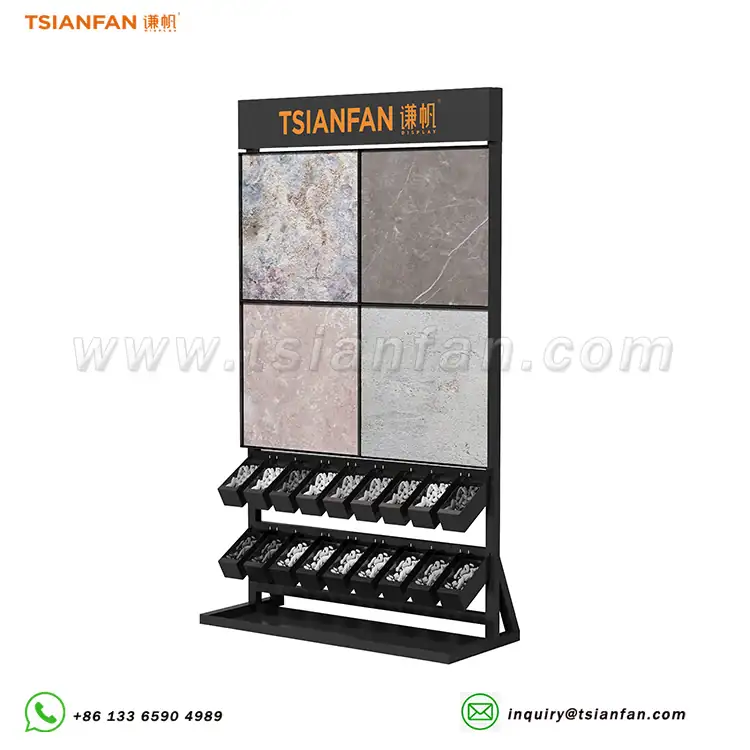

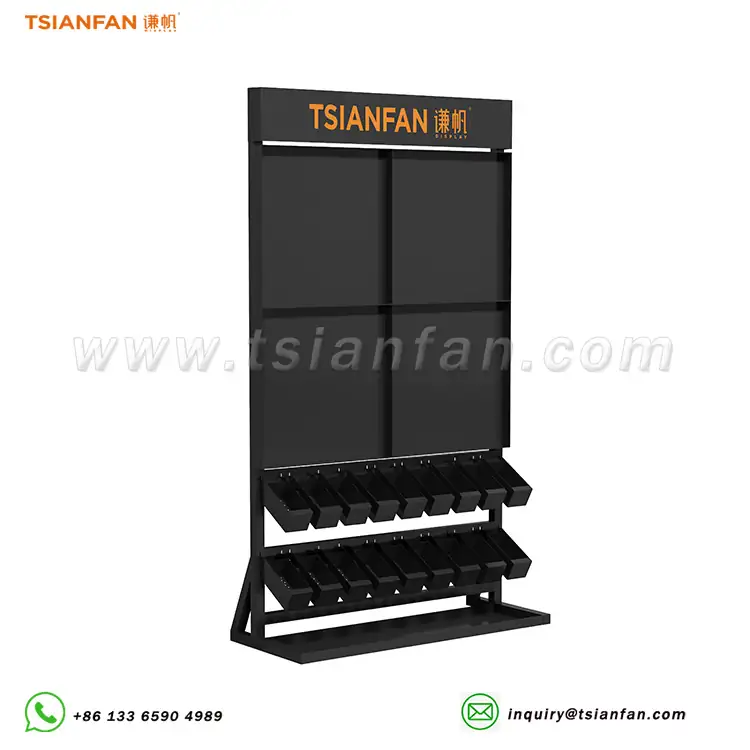

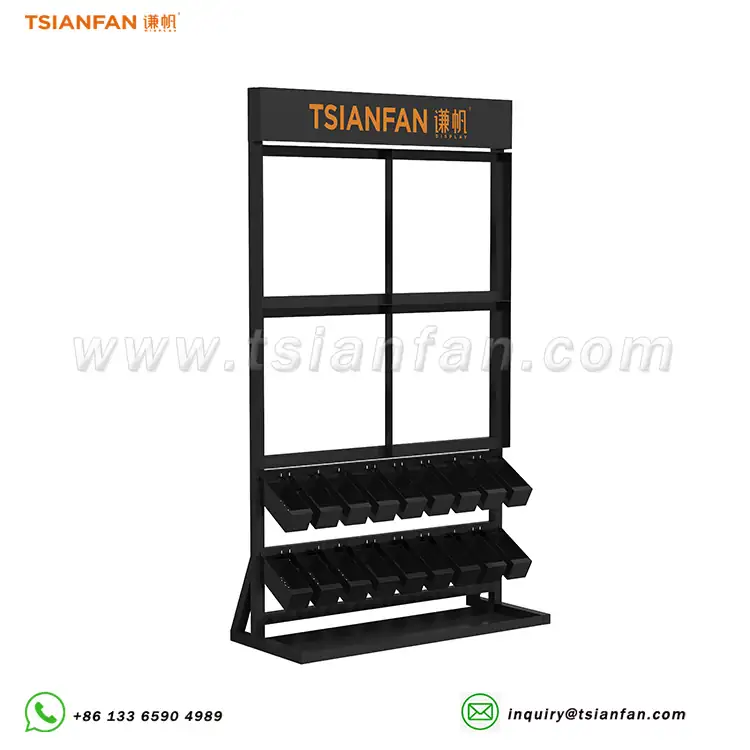

New design Mosaic tile sample MDF board stone display board PF005-20​

20 Product Overview

The 20 frame is engineered with a center of gravity 40% below the midpoint. Even with all sample panels pulled out simultaneously, the rack stays planted.

We designed the 20 after visiting 30+ tile showrooms and noticing the same bottleneck: staff wasting time lifting heavy sample boards. This rack lets one person reorganize an entire display wall in minutes.

We manufacture the 20 in our Xiamen facility where we control every step from steel procurement to final assembly. No subcontractors, no quality gaps.

We pre-drill and tap every threaded insert on the 20 before finishing, so the powder coat never fills the threads. Your assembly bolts go in clean every time.

Key Features

• Slot-to-slot spacing adjustable from 15mm to 45mm without disassembly
• Modular end-frames bolt together in any combination — start with 8 slots, expand as your line grows
• Push-pull rail mechanism rated at 50kg per rail — keeps heavy slabs gliding smoothly after years of daily use
• CNC-laser-cut slot brackets with ±0.5mm tolerance — every panel sits at exactly the same angle
• Pre-assembled slider carriages — no loose ball bearings to deal with during setup
• All fasteners are M8 stainless steel — standard size available at any hardware store worldwide
• 600°C baked powder coating — same finish spec used for outdoor architectural hardware
• Stainless steel ball-bearing sliders with dampened stops — panels glide, then lock into viewing position without slamming

Why Buy Direct from Tsianfan

• Engineering support included at no charge — send us your floor plan for an optimized layout proposal
• We own the factory in Xiamen — no middlemen, no brand licensing fees, no inflated logistics charges
• 15+ standard models kept in finished-goods inventory — most sample orders ship within one week
• We ship to 50+ countries with correct export documentation on every shipment
• Factory tours welcome in person or via live video — see your order on the production line

Where This Display Rack Fits

Architectural specification libraries

Ordering & Customization

Every order starts with your requirements — dimensions, color, capacity, branding. Contact our sales team at WhatsApp: +86 13365904989 or email: [email protected]. We prepare a detailed quotation with production timeline, typically within 24 hours. For custom sizes, include a simple sketch or reference dimensions — our engineering team handles the rest.
