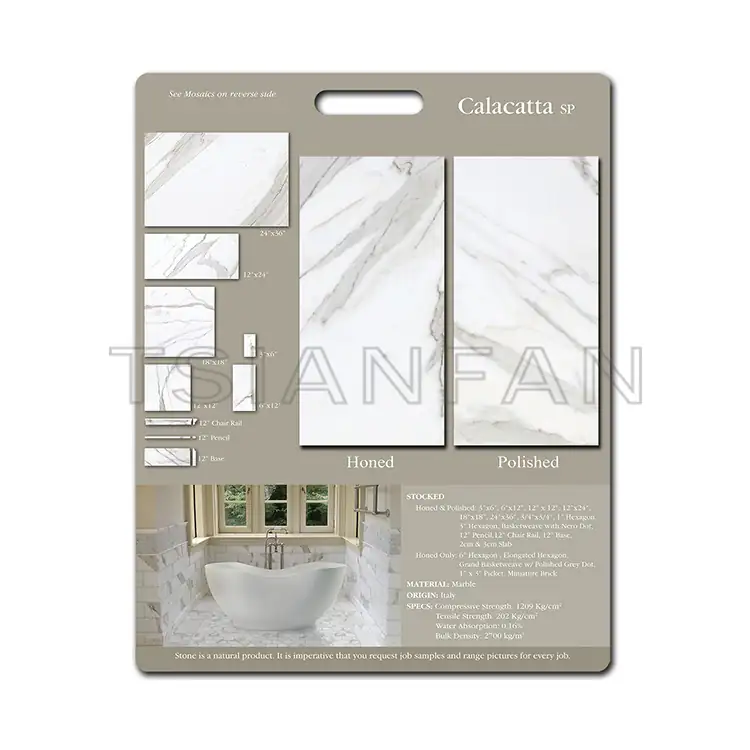

Customize high quality MDF marble tile sample display board PF005-17
The rail system on the 17 uses ball-bearing sliders rated at 10,000+ cycles. That is roughly 5 years of daily use in a busy showroom before any maintenance is needed.
17 Product Overview

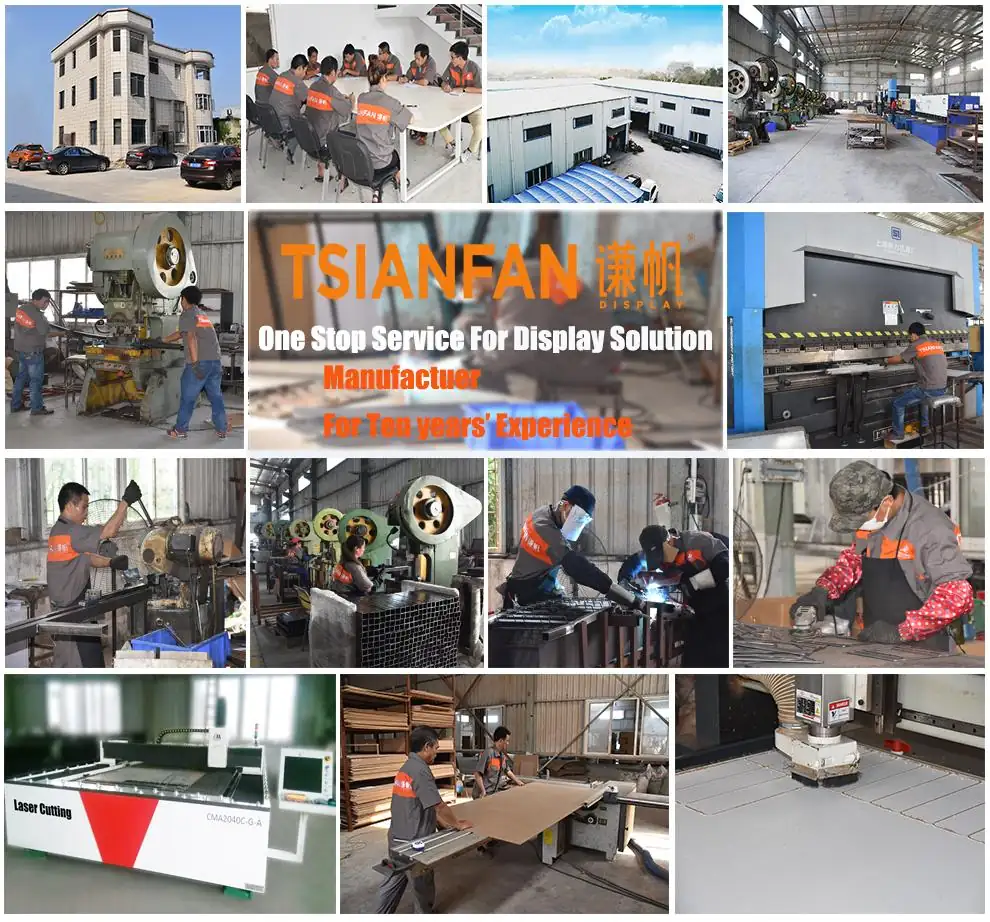

We manufacture the 17 in our Xiamen facility where we control every step from steel procurement to final assembly. No subcontractors, no quality gaps.
We finish the 17 in matte black as standard because it does not compete visually with tile colors. Custom RAL color matching is available for branded showroom environments.
Each 17 leaves our factory with a QR-coded inspection report showing the batch number, welder ID, coating thickness measurements, and the name of the QC inspector who signed off.
The 17 frame starts as cold-rolled steel tube, cut and welded on CNC jigs to maintain consistent slot spacing across every unit. No shims, no field adjustments needed.
Key Features
- Cold-rolled steel main frame with full-length internal reinforcement ribs
- Cross-braced rear panel eliminates side-to-side sway when panels are being browsed
- Slot-to-slot spacing adjustable from 15mm to 45mm without disassembly
- Integrated floor anchors included — zero tip risk even with all panels pulled out simultaneously
- 600°C baked powder coating — same finish spec used for outdoor architectural hardware
- Load-rated at 75kg per shelf — holds even the thickest 1200×1200mm porcelain slabs
- CNC-laser-cut slot brackets with ±0.5mm tolerance — every panel sits at exactly the same angle
- Removable end caps allow infinite row extension by bolting additional units together
Why Buy Direct from Tsianfan
- We own the factory in Xiamen — no middlemen, no brand licensing fees, no inflated logistics charges
- Steel sourced from ISO-certified mills with full material traceability
- Every rack completes a 72-hour salt-spray corrosion test before it ships
- Engineering support included at no charge — send us your floor plan for an optimized layout proposal
- 11 years manufacturing display systems exclusively for the building materials industry
Where This Display Rack Fits
Ceramic tile showrooms and retail flooring stores
Ordering & Customization
Every order starts with your requirements — dimensions, color, capacity, branding. Contact our sales team at WhatsApp: +86 13365904989 or email: [email protected]. We prepare a detailed quotation with production timeline, typically within 24 hours. For custom sizes, include a simple sketch or reference dimensions — our engineering team handles the rest.
Common Questions
What materials can the 17 hold?
The 17 is designed around ceramic and porcelain tile samples. Share your sample dimensions and weight with our team, and we will confirm compatibility — usually within one business day.
Can the 17 be expanded later?
Most of our display racks are modular. You can bolt additional units together to create longer display walls as your product line expands. Contact us with your current configuration for expansion compatibility.
What if a part arrives damaged?
We photograph every order during packing. If any component arrives damaged, send us photos of the affected parts and packaging. Replacement parts ship at our cost.
Where is Tsianfan located and can I visit?
Our manufacturing facility is in Xiamen, Fujian, China, about 20 minutes from Xiamen Gaoqi International Airport. Factory visits are welcome — we can arrange airport pickup. We also offer live video walkthroughs during production if you prefer not to travel.
How is the rack packaged and shipped?
Steel components are foam-wrapped and packed in reinforced export cartons or plywood crates depending on order volume. We ship via sea freight FOB Xiamen, air freight, or international courier. You are welcome to use your own forwarder as well.
