4 pages plastic quartz sample book-py2023
The PY2023 frame uses CNC-welded joints throughout — every structural connection is a continuous weld bead, not a bolt and washer. This doubles the load rating compared to bolt-together designs.
PY2023 Product Overview
We manufacture the PY2023 in the same facility where we build industrial storage systems, which is why the load ratings on our display racks are conservative rather than aspirational.
Humidity in stone warehouses can be extreme. The PY2023 powder coat is applied at 90-110μm thickness — more than triple the industry minimum — with a zinc phosphate undercoat for corrosion resistance.
The PY2023 contact pads are made from EPDM rubber — the same material used in permanent outdoor gaskets. They won’t degrade, stain, or transfer color to light-colored stone surfaces.
Stone showrooms face constant tension: display more products to sell more, but do not overcrowd the space. The PY2023 uses a staggered front-to-back layout that shows every slab face from a single aisle.
Key Features
- Modular bolt-together frame for infinite row extension
- Adjustable slot depth for stone thickness from 10mm to 30mm without adapter plates
- Full-frame gusset plates at all four corners for lateral load handling
- Load-tested to 120kg per slot with published safety factors
- Powder coat applied at 90-110μm thickness — over triple the industry minimum
- Zinc phosphate anti-corrosion undercoat beneath the powder coat finish
- Tilt-back sample angle keeps slabs stable without clamping — customers browse, slabs stay put
- EPDM rubber contact pads at all sample touch points — zero UV degradation, zero staining
Why Buy Direct from Tsianfan
- Steel components backed by mill certification for every structural member
- Custom engineering at no extra charge for orders of 20+ units
- Vertical integration from steel procurement to finished product — consistent quality and cost control
- Serving stone importers in 50+ countries — our racks perform in every climate zone
- Factory-direct pricing with no middlemen or agent commissions
Where This Display Rack Fits
Stone fabrication shop sample display areas
Ordering & Customization
Every order starts with your requirements — dimensions, color, capacity, branding. Contact our sales team at WhatsApp: +86 13365904989 or email: [email protected]. We prepare a detailed quotation with production timeline, typically within 24 hours. For custom sizes, include a simple sketch or reference dimensions — our engineering team handles the rest.
Common Questions
Do you offer design assistance for showroom layouts?
Yes. Send us your floor plan with dimensions and our team will propose a rack configuration that balances product density with customer flow. This service is included at no charge for any order inquiry.
How is the rack packaged and shipped?
Steel components are foam-wrapped and packed in reinforced export cartons or plywood crates depending on order volume. We ship via sea freight FOB Xiamen, air freight, or international courier. You are welcome to use your own forwarder as well.
How long does delivery take?
Standard models in stock ship within 7 business days. Custom orders typically require 15-25 business days for production. Sea freight transit varies by destination — most ports in Europe, the Americas, and Southeast Asia receive shipments within 25-35 days after departure.
Where is Tsianfan located and can I visit?

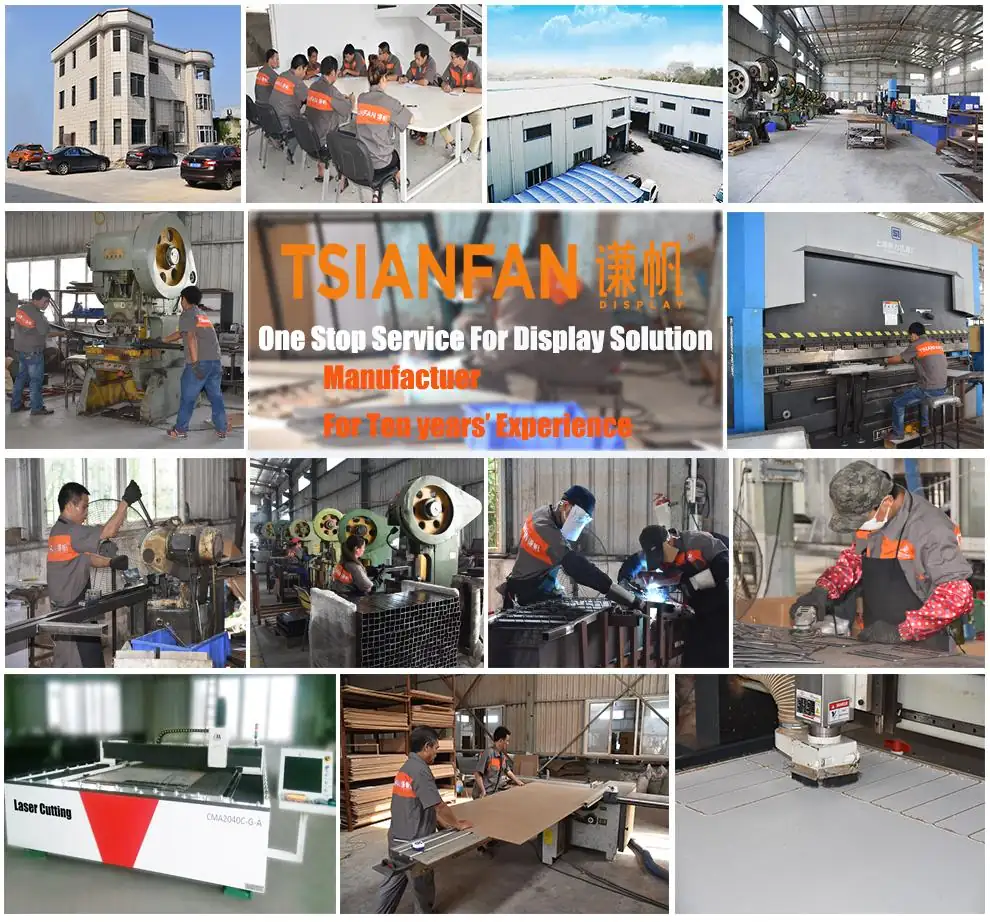

Our manufacturing facility is in Xiamen, Fujian, China, about 20 minutes from Xiamen Gaoqi International Airport. Factory visits are welcome — we can arrange airport pickup. We also offer live video walkthroughs during production if you prefer not to travel.
What if a part arrives damaged?
We photograph every order during packing. If any component arrives damaged, send us photos of the affected parts and packaging. Replacement parts ship at our cost.
